How Does A Hands Free Door Opener Work

How Does A Touchless Automatic Door Opener Work? | Sales: [email protected]

In recent years, hands free or touchless door automation has gain much popularity. Nearly 80% of all sickness causing germs spread by hands. What's worse is damp hands can spread 1000 times more germs than dry hands. With statistics like this, and the push to reduce the spread of germs, automatic door openers with touch free activation has bee a priority in building applications like hospitals and healthcare facilities. Still however we have not met mass adoption. Restroom doors found in retail stores, schools, and grocery stores should all have touchless automatic door openers. In this article we will explore how a hands free door opener works as well as the benefits and applications.

The Standard Hands Free Door Opener Set Up

A standard hands free automatic door opener set up consists of an interior side touchless activation switch, an exterior side touchless activation switch, and a low energy handicap automatic door opener. Inside of the handicap door opener header enclosure houses a dc motor and gearbox as well as a microprocess controller. For wireless touchless activation switches a receiver module is wired to the automatic door opener's controller. For hardwired touchless activation switches the wires from the activation switch must be routed to the automatic door opener's controller. When a pedestrian approaches the hands free activation switch, he or she can wave their hand in front of the face plate of the activation switch. The motion of the pedestrian's hand activates the touchless switch. The activation signal is sent from the activation switch either wirelessly or hardwired depending on the touchless switch type. The receiver in the automatic door opener's header enclosure receives the signal and closes it's relay contact, which activates the automatic door opener controller to provide voltage to the dc motor. The dc motor spindle rotates causing the gearbox to turn. At the bottom of the gearbox is an arm spindle. The arm spindle begins to rotate. As the arm spindle rotates the door arm pushes or pulls the door open. The pedestrian then passes through the door way. Once the pedestrian's hand is away from the touchless door opener's detection zone the automatic door opener will close after the programmed hold open time on the automatic door controller ends. The automatic door opener will then gently close the door.

Types Of Touchless Activation

As mentioned earlier, there are two main types of touchless automatic door activation switches on the market today: hardwired and wireless.

Hardwired Hands Free Switches

Hardwired touchless activation switches are what the majority of hands free door switches on the market are. They operate just as well as wireless activation touch free switches, but can be extremely difficult to install since power wires and signal/relay wires must be routed from the activation switch to the automatic door controller. This can add hours to the installation process especially if your hardwired activation switch is mounted to a brick exterior wall or interior drywall and surface mount electrical conduit or concealment is used. Automatic Door and Hardware offers Warhawk hardwired touchless activation switches, which can be integrated with any automatic door opener brand.

Wireless Hands Free Switches

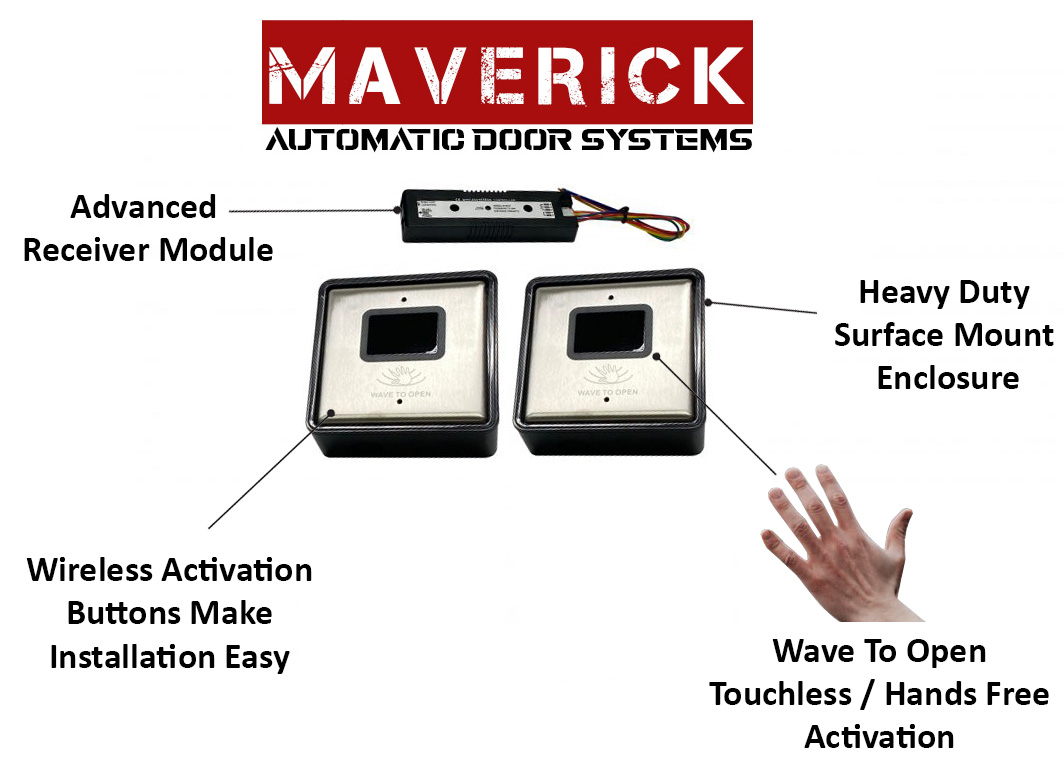

Wireless hands free switches are ideal because installation is extremely easy since no wires need to be routed from the wireless activation switch to the low energy automatic door controller. Instead a wireless receiver is integrated into the automatic door opener's controller. The touchless activation switch features a transmitter which emits a signal that is captured by the automatic door controller's receiver. This communicates with the automatic door opener to activate or open the door. The Warhawk touchless activation switch is one of the only wireless hands free activation switches on the market today. Our Warhawk touchless automatic door switches can be integrated into any automatic door opener brand.



Hands Free Door Opener Detection Zone

With the Warhawk wireless activation switch, the detection zone is 1 to 12 inches. This allows the installer to adjust the Warhawk touch free switch to the detection zone best suited for each individual door application. Depending on the location of the door in relation to the building's walls or hallway, needed detection zones will vary.

Hands Free Door Opener Frequency

With the Warhawk wireless activation switch, the frequency used is 2.4GHZ. This allows for a seamless and reliable signal that can be captured by the receiver. Unlike traditional radio controlled door accessories that operate on 300MHz, 433MHz, or 900MHz, the 2.4GHz frequency uses a shorter wavelength, allowing the Warhawk signal to penetrate through more material with less chance of interference. The 2.4GHz Warhawk activation switch can also transmit further than a 300MHz, 433MHz, or 900MHz transmitter.

Hands Free Door Opener Applications

In the past 30 years hands free door openers were very popular in Asia. However in the USA market, they were only found in special facilities that had clean rooms such as microchip factories. Now today there is a push for stopping the spread of germs, as a result they have gained popularity in the USA. Today hands free automatic door openers are commonly found in hospital restrooms or hospital operating rooms. Although hands free automatic door openers are not a mandatory requirement yet, here at Automatic Door and Hardware we encourage any public building to at a minimum have touchless automatic door openers for their restroom doors. Especially if your establishment deals with food products such as grocery stores, convenience stores, restaurants. We also recommend schools and universities push for touchless automatic door openers in their facilities because the Warhawk hands free switch can greatly help reduce the spread of germs in commercial buildings that house large groups or gatherings of people.



Why Choose Warhawk Hands Free Door Openers & The Commander ADA Door Operator

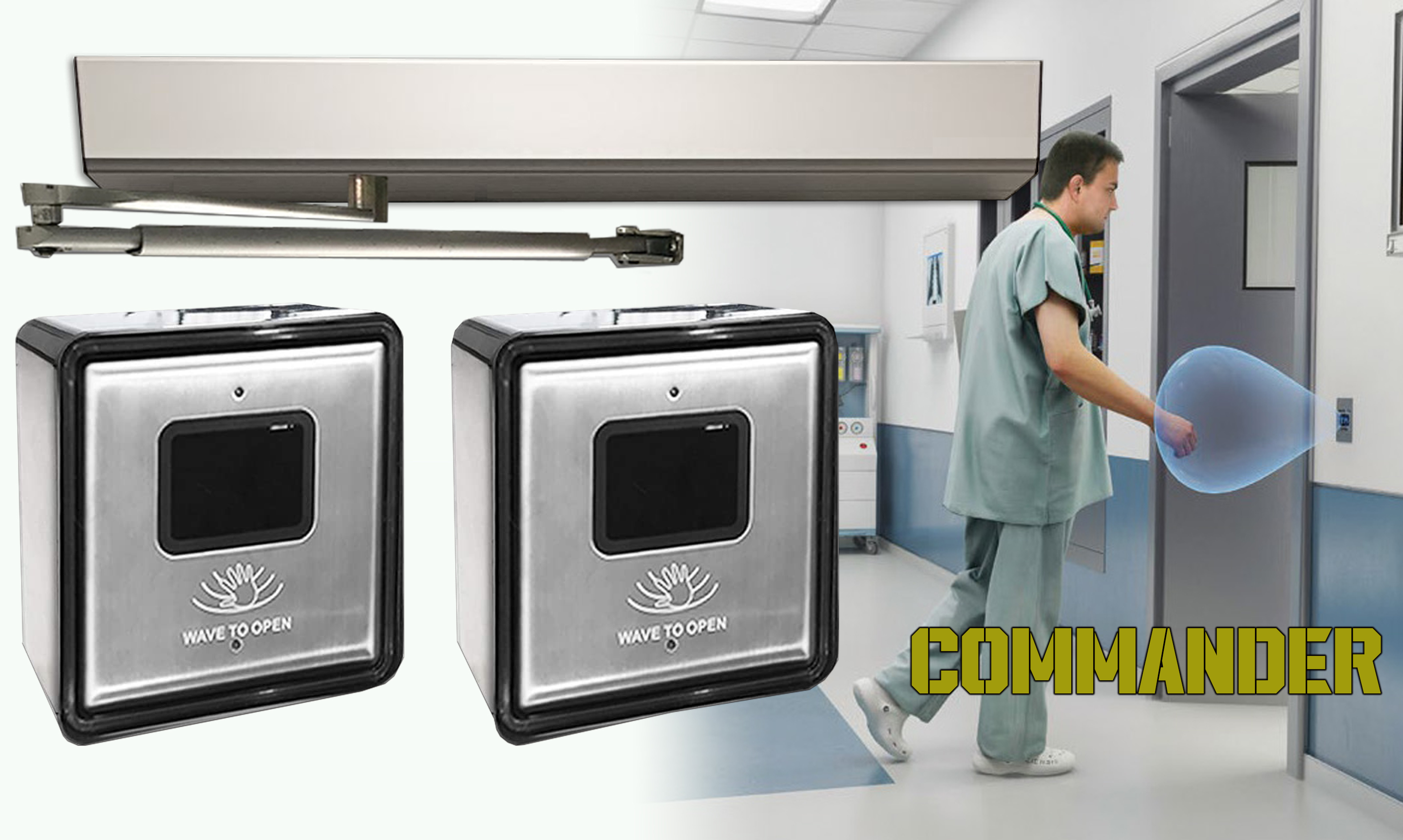

At Automatic Door and Hardware we offer building owners and contractors an all in one hands free door opener kit. This easy to install door opener package includes our state of the art Commander automatic swing door opener and Warhawk wireless touch free activation switches. Unlike other products on the market today, our products feature wireless technology and seamless operation. Trusted by many Universities, Schools, and Hospitals across the country, experience today why Automatic Door and Hardware's touchless door opener is the best choice.




Disclaimer: The material in this article has no regard to the specific installation, building code requirements, law requirements, authority having jurisdiction, local or state requirements, or any particular needs of any viewer. This article is presented solely for informational and entertainment purposes and is not to be construed as a recommendation or solicitation. Nor should any of its content be taken as advice. Automatic Door and Hardware is not an installation advisor. The views expressed in this article are completely speculative opinions and do not guarantee any specific result. Commercial doors, hardware, and automatic door parts should only be worked on by trained, qualified, and licensed professionals; failure to do so can result in danger. Any opinions expressed in this article are subject to change without notice. Automatic Door and Hardware is not under any obligation to update or keep current the information contained herein. Automatic Door and Hardware may have an interest in the securities and commodities of any entities referred to in this material. Automatic Door and Hardware accepts no liability whatsoever for any loss or damage of any kind arising out of the use of all or any part of this material. Automatic Door and Hardware recommends that you consult with a licensed and qualified professional before making any modifications or repairs to commercial doors, automatic doors, or hardware components of those doors. The content covered in this article is NOT to be considered as advice. I’m NOT an adviser. These are only my own personal and speculative opinions, ideas, theories, hypotheses, charts, technical analysis, insights, and curated news publications. The technical analysis in this article is completely speculative and does NOT guarantee any specific result. The technical analysis in this article has NO proven rate of accuracy. Do NOT repair or modify your doors and/or hardware based upon the analysis presented in this article. Always do your own research and only use trained and licensed professionals for any repairs or modifications. I will NOT be held liable for any of your personal repairs or modifications or any losses/damages that you may incur if you do repair or modify your doors and/or hardware. Information provided through this article is provided to you as is without any express representations or warranties of any kind, and we make no representation or warranty that this article (or any information provided in response to your inquiry), will be accurate, complete, or error-free. You agree that you must evaluate all information and responses, and that you bear all risks associated with, the use of this article, including any reliance on the accuracy, completeness, or usefulness of any information or materials made available through this article. This article is purely for entertainment purposes only!
