How to Repair an Automatic Door That's Making a Grinding Noise


How to Repair an Automatic Door That's Making a Grinding Noise

Automatic doors are a great convenience for any commercial building. They allow for easy access and smooth entry and exit for customers and employees. However, when an automatic door starts making a grinding noise, it can be frustrating and concerning. Fortunately, there are some steps you can take to troubleshoot and repair your automatic door. Here's what you need to know.

Step 1: Identify the Source of the Noise

The first step in repairing an automatic door that's making a grinding noise is to identify the source of the noise. This can be tricky, as there are many components that make up an automatic door system. However, some common sources of grinding noises include:

  • Worn or damaged gears from gearbox
  • Loose or damaged belts
  • Worn or damaged rollers
  • Dirty or clogged tracks
  • Loose or damaged motor mounts
  • Loose or damaged door frame

By identifying the source of the noise, you can better diagnose the problem and determine the necessary repairs.

Step 2: Inspect and Clean the Door Tracks

If the grinding noise is caused by dirty or clogged tracks, you can often solve the problem by cleaning the tracks. Use a soft cloth or brush to remove any debris or dirt from the tracks. You can also use a vacuum to remove any loose dirt or debris. Once the tracks are clean, apply a lubricant to help the rollers move smoothly.

Step 3: Check the Gears and Belts

If the grinding noise is caused by worn or damaged gears or belts, you may need to replace these components. First, inspect the gears and belts for signs of wear or damage. If you notice any cracks, breaks, or missing teeth, these components will need to be replaced. You can order replacement gears and belts from a reliable supplier, such as Automatic Door and Hardware.

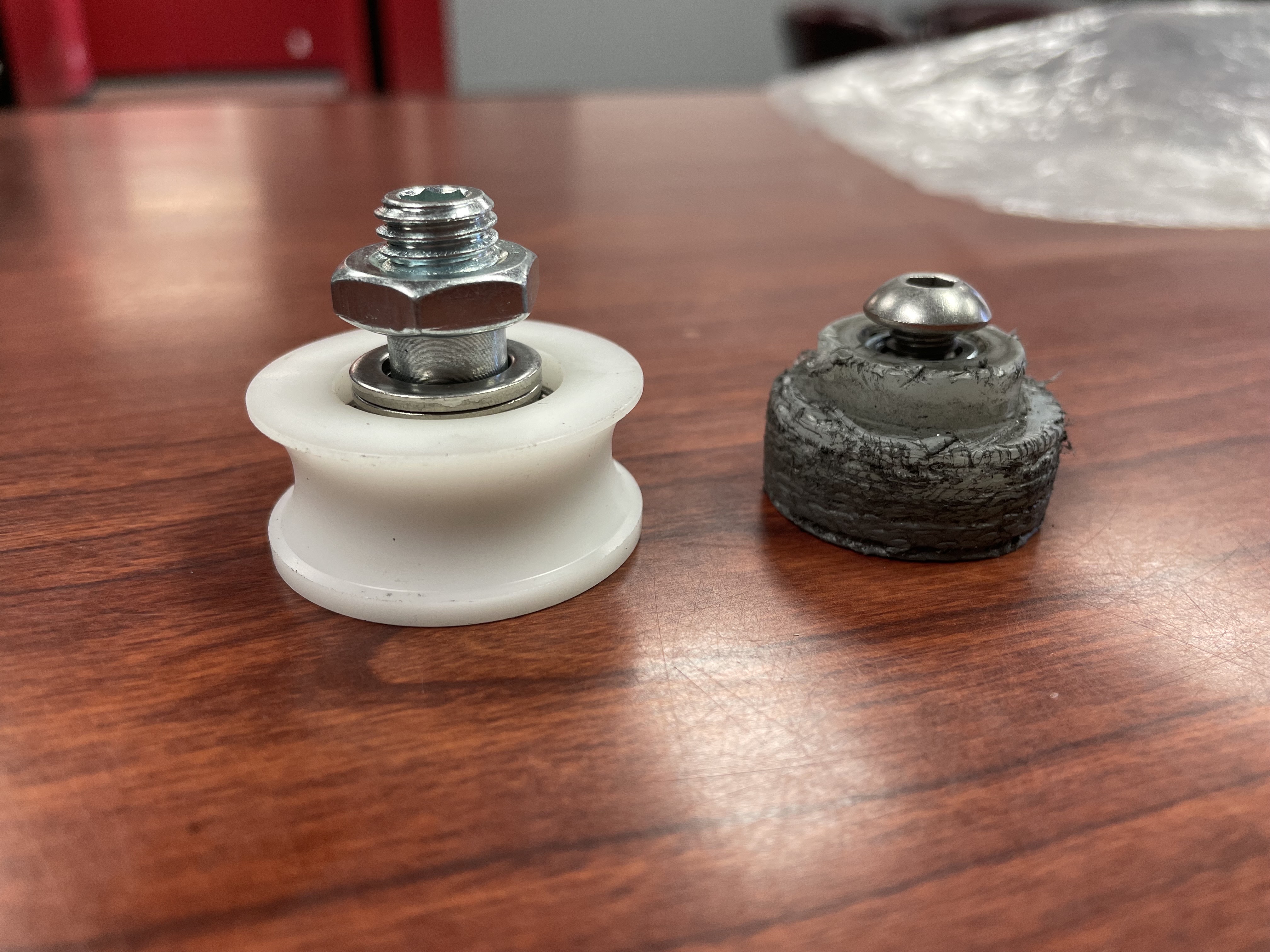

Step 4: Inspect and Replace Rollers

Worn or damaged rollers can also cause a grinding noise in an automatic door. Inspect the rollers for signs of wear or damage, such as cracks, chips, or flat spots. If the rollers are worn or damaged, they will need to be replaced. Automatic Door and Hardware offers a wide range of replacement rollers for automatic doors.

Step 5: Check Motor Mounts and Door Frame

If the grinding noise is caused by loose or damaged motor mounts or door frames, you may need to tighten or replace these components. Inspect the motor mounts and door frame for signs of wear or damage. If you notice any cracks or breaks, these components will need to be replaced. If the motor mounts or door frame are simply loose, tighten the bolts or screws to secure them in place.

Step 6: Call a Professional

If you have followed these steps and are still experiencing a grinding noise, it may be time to call in a professional. An experienced technician can diagnose the problem and make the necessary repairs. At Automatic Door and Hardware, we offer a wide range of replacement parts and accessories for automatic doors, as well as repair and installation services. Contact us today to learn more about how we can help you keep your automatic doors running smoothly and quietly.

By following these steps and taking care of your automatic door, you can ensure that it continues to function properly and provide a convenient entry and exit for your customers and employees. Regular maintenance and repairs can also help extend the lifespan of your automatic door system and prevent more serious problems from developing.

Automatic doors and automatic door replacement parts are available at www.autodoorandhardware.com.
