Maverick HA8LP Low Profile Automatic Door Opener Package for Storefront Doors

Standard Duty ADA Automatic Door Opener Kit for Existing Aluminum Storefront Doors Up to 300 lb. Doors

Already have an aluminum storefront swing door and need to make it automatic? The Maverick HA8LP Storefront Automatic Door Opener Package provides the automatic operator and wireless handicap activation components needed to convert a compatible existing commercial storefront door into an automatic accessible entrance.

The Maverick HA8LP is our standard-duty commercial automatic door operator designed for the majority of everyday storefront applications. Its low-profile 4-1/8" x 5-1/8" header provides commercial-grade power and reliability in a more compact package.

Designed for doors weighing up to 300 lbs., the HA8LP combines a 1/8 HP electromechanical motor, high-precision gears, aluminum-alloy gearbox, heavy-duty sealed bearings and a digital control board for dependable long-term operation.

Unlike handed automatic door operators, the Maverick HA8LP is non-handed and is available for either push-side or pull-side applications, simplifying operator selection and providing greater installation flexibility.

Instead of purchasing the automatic operator, handicap push buttons, wireless transmitters and receiver separately, this package combines the major automatic door components into one convenient storefront retrofit solution.

Important: This is an automatic door opener retrofit package only. The aluminum storefront door, storefront frame, glass and existing door hardware are not included. Doors and frames may be shown in product images only to illustrate the intended application.

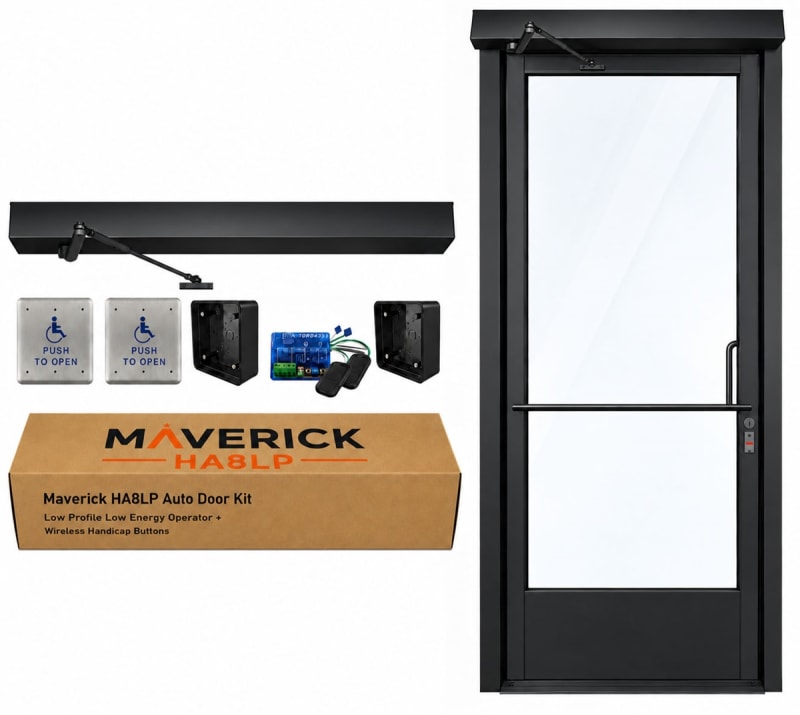

What's Included with This Storefront Automatic Door Opener Package?

This package provides the major automatic door components needed to add automatic operation and wireless handicap activation to a compatible existing aluminum storefront door.

• 1 Maverick HA8LP Low Profile Automatic Door Operator
• 2 Commercial Handicap Push Buttons
• 2 433 MHz Wireless Transmitters
• 1 Compatible 433 MHz Wireless Receiver
• Automatic activation capability from both sides of the entrance

Not Included: Aluminum storefront door, storefront frame, glass, pivots, hinges, locks, panic hardware, electric strikes, access control equipment or other commercial door hardware unless specifically stated otherwise.

Our Standard Duty Choice for Most Commercial Door Applications

Not every commercial entrance requires an oversized ultra heavy-duty automatic door operator.

The Maverick HA8LP is designed to provide a balance of commercial-grade construction, compact size, versatility and dependable automatic operation for the majority of typical commercial swing door applications.

With a maximum door weight of 300 lbs., a powerful 1/8 HP motor and high-precision commercial gearing, the HA8LP provides plenty of capability for many conventional aluminum storefront entrances.

For exceptionally heavy doors or demanding high-traffic applications where additional capacity is required, consider the Maverick HA8SP Ultra Heavy Duty Automatic Door Operator.

Low Profile Design – Commercial Grade Performance

One of the biggest advantages of the Maverick HA8LP is its low-profile 4-1/8" x 5-1/8" header.

The smaller operator profile provides a cleaner appearance above the entrance while maintaining the commercial-grade construction required for dependable automatic door operation.

This makes the HA8LP especially attractive for storefront applications where available mounting clearance and appearance matter.

You get the strength and dependability of the HA8 platform without requiring the larger standard-profile housing used by the ultra heavy-duty HA8SP.

Designed for Your Existing Storefront Door

If you already have a properly functioning aluminum storefront door and frame, replacing the entire entrance may be unnecessary just to add automatic operation.

This package is designed to retrofit a compatible existing commercial storefront swing door with the Maverick HA8LP automatic operator and wireless handicap activation system.

Your existing storefront door, frame, glass, pivots or hinges and compatible door hardware remain part of the opening.

The Maverick HA8LP is added to provide automatic opening and controlled closing.

Non-Handed Design Simplifies Operator Selection

The Maverick HA8LP is non-handed, providing greater flexibility when configuring the operator for an existing commercial storefront entrance.

Instead of requiring a completely different operator based on left-hand or right-hand door handing, the HA8LP provides a universal operator platform that can be configured for the appropriate application.

The operator is available for both push-side and pull-side installations, depending on the direction of door swing and operator mounting location.

Push or Pull Side Installation

The Maverick HA8LP can be configured for either push-side or pull-side storefront door applications.

Push-Side Applications

In a push-side configuration, the operator arm pushes the storefront door away from the operator mounting side during automatic opening.

The HA8LP accommodates a push reveal up to 14 inches.

Pull-Side Applications

In a pull-side configuration, the operator uses the appropriate pull arm assembly to pull the door toward the operator mounting side.

The HA8LP accommodates a pull reveal up to 5 inches.

Maverick HA8LP Low Profile Automatic Door Operator

The Maverick HA8LP is a low-profile low energy automatic swing door operator designed for dependable commercial operation.

Its electromechanical construction combines a 1/8 HP motor with high-precision gears and an aluminum-alloy gearbox engineered for sustained long-term use.

Permanent lubrication and heavy-duty sealed bearings help provide dependable operation while reducing routine drivetrain maintenance requirements.

Maverick HA8LP Features

• Designed for doors weighing up to 300 lbs.
• Low-profile 4-1/8" x 5-1/8" header
• Non-handed universal operator design
• Available for push or pull applications
• 1/8 HP electromechanical motor
• High-precision gears designed for sustained long-term use
• Machined aluminum-alloy gearbox housing
• Heavy-duty sealed bearings
• High-wear-protection gear grease
• Permanent lubrication
• Quiet automatic operation
• Digital control board
• On-board programming
• Plug-n-play design
• Adjustable spring tension
• Adjustable door stop
• Standard mechanical clutch
• 1-inch solid spline spindle arm connection
• On / Off / Hold Open switch
• Built-in strike / mag lock relay
• Fail-safe or fail-secure electric lock control capability
• 24 VDC electric strike power
• Separate inputs for activation and safety devices
• Compatible with appropriate safety and activation devices
• Compatible with building access and security systems
• Side-loading design

Maverick HA8LP Technical Specifications

Wireless Handicap Door Activation

This package includes two commercial handicap push buttons, providing automatic activation capability from both sides of the storefront entrance.

Each handicap push button uses a compatible 433 MHz wireless transmitter.

When either button is pressed, the transmitter sends an activation signal to the included wireless receiver connected to the Maverick HA8LP.

The receiver then signals the HA8LP to begin the automatic opening cycle.

Wireless Activation Package Includes

• 2 commercial handicap push buttons
• 2 compatible 433 MHz wireless transmitters
• 1 compatible 433 MHz wireless receiver
• Wireless automatic activation capability from both sides of the entrance
• Reduced need for activation wiring between the push buttons and operator

Reduce Activation Wiring

Running new control wiring through an existing storefront entrance can be difficult, particularly when the surrounding walls and storefront construction are already finished.

The included wireless activation system allows the handicap push buttons to communicate wirelessly with the receiver at the operator, reducing the amount of activation wiring that needs to be routed through existing construction.

Built-In Electric Lock Control

Many commercial storefront doors use mechanical or electric locking hardware that must be released before an automatic operator can open the door.

The Maverick HA8LP includes a built-in strike / mag lock relay with support for compatible fail-safe or fail-secure locking applications.

The operator also provides 24 VDC electric strike power, allowing compatible electric locking hardware to be integrated into the automatic door system when required.

Electric strikes, magnetic locks and other electric locking hardware are not included with this standard package unless specifically stated otherwise.

Ready for Access Control Integration

The Maverick HA8LP is designed to integrate with compatible building access and security systems.

Separate inputs for activation and safety devices provide flexibility when combining the automatic operator with other components at the entrance.

Depending on the overall system design, the HA8LP can be integrated with compatible:

• Handicap push buttons
• Touchless activation switches
• Safety devices
• Electric strikes
• Magnetic locks
• Card readers
• Keypads
• Key switches
• Building access control systems
