*Commercial Door Not Included. Automatic Door Opener Only.

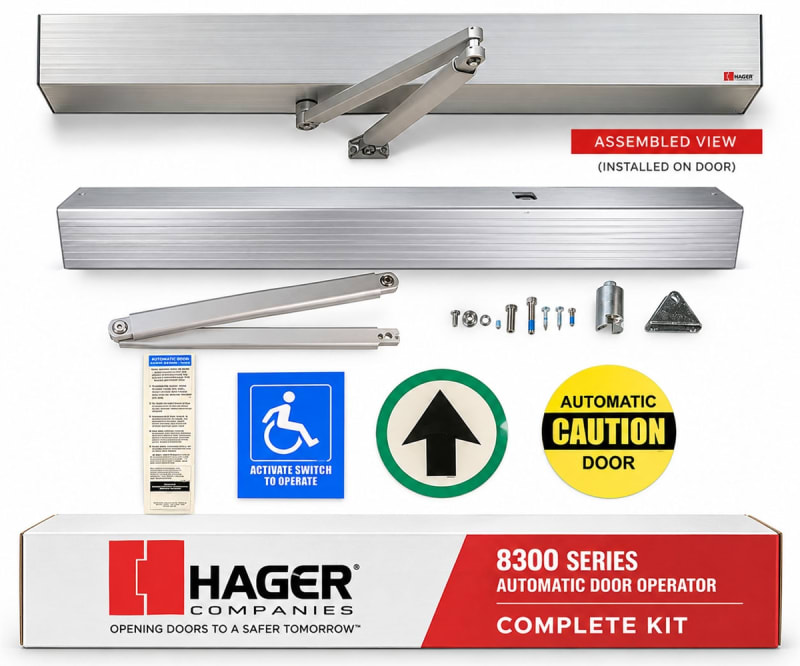

The Hager 8300 Series Handicap Door Opener is a commercial low-energy automatic swing door power operator designed for accessible single-door entrances. Engineered for quiet operation, easy installation and flexible programming, the Hager 8300 is an excellent solution for commercial doors requiring automatic ADA access.
The 8300 features a non-handed design that allows the operator to be configured for either push/outswing or pull/inswing applications. It can be used on fire-rated and non-fire-rated openings and on applicable exterior doors when the operator is mounted on the interior side.
With onboard accessory power, electric lock integration, adjustable opening and closing speeds, programmable hold-open time and advanced control capabilities, the Hager 8300 provides a versatile automatic entrance solution for commercial and institutional buildings.
The Hager 8300 is designed for low-energy ADA automatic door applications and is ANSI/BHMA A156.19 certified for doors up to 48" wide and 200 lbs.
A compatible knowing-act activation device, such as a handicap push button, wireless push plate or touchless actuator, can signal the operator to automatically open the door. Opening speed, closing speed and hold-open time are adjustable to meet the requirements of the installation.
Appropriate automatic door signage is included with each operator.

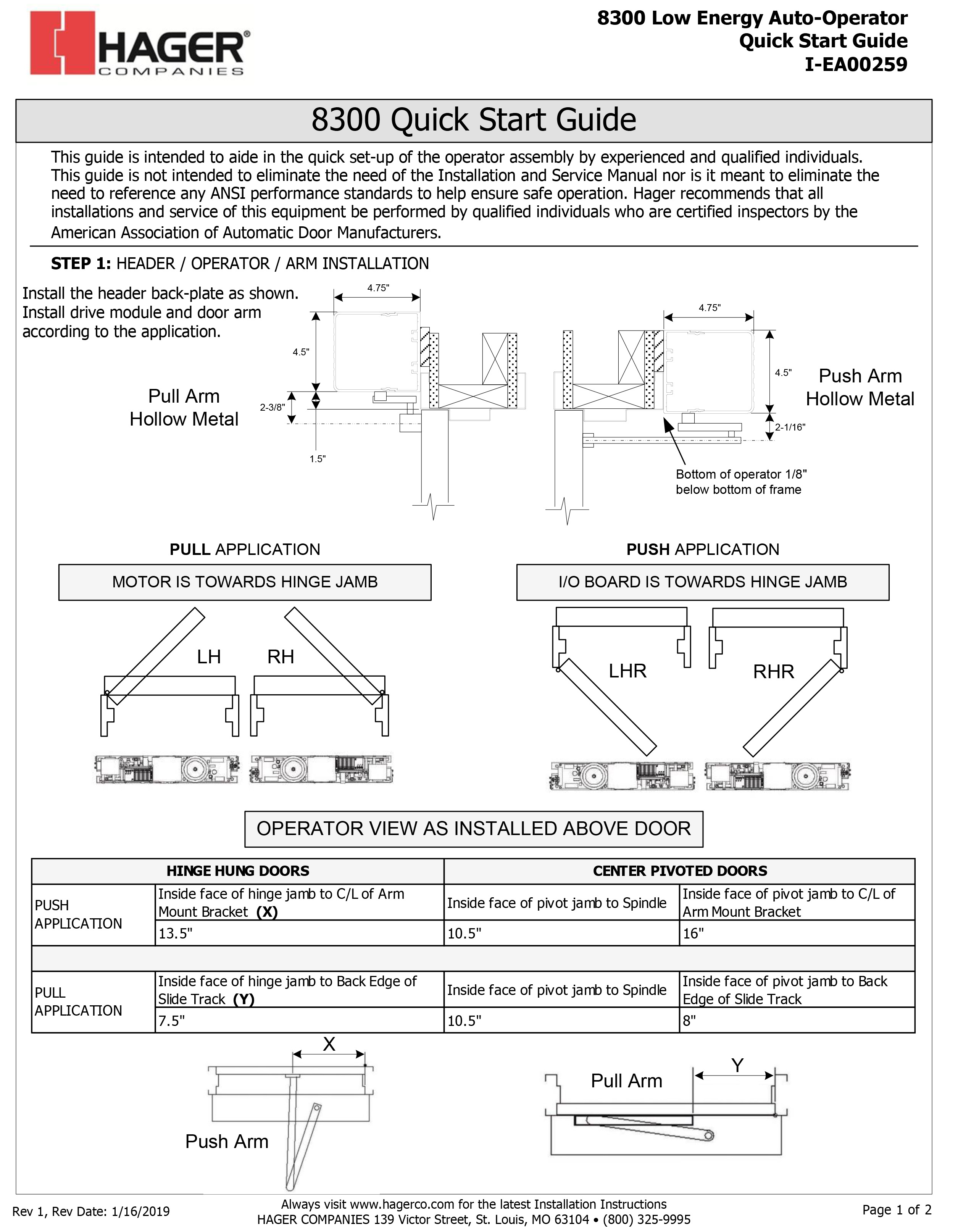

The Hager 8300 is non-handed, providing flexibility for commercial doors with different handings and swing directions. The proper operator arm configuration is selected according to the installation.
| Application | Configuration |
|---|---|
| Push / Outswing | Standard push arm configuration for applicable outswing doors |
| Pull / Inswing | Pull arm configuration for applicable inswing doors |
| Standard Door Widths | 36", 42", 44" and 48" |
| Maximum Door Width | Up to 5' |
| Maximum Door Weight | Up to 350 lbs. |
| ANSI/BHMA A156.19 Certified Capacity | Up to 48" wide and 200 lbs. |
| Opening Force | Less than 15 lbs. |
| Closing Force | Greater than 8 lbs. |

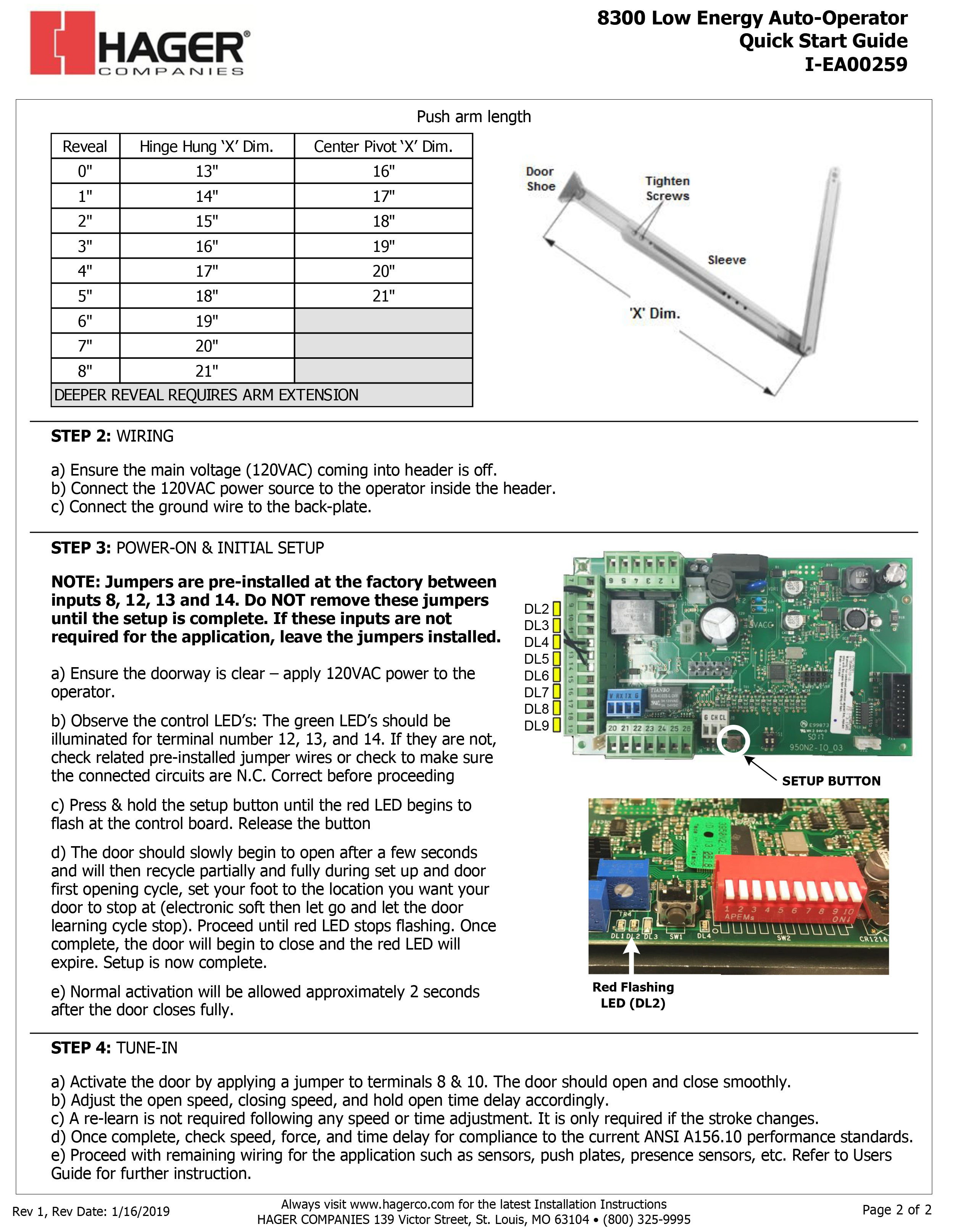

The Hager 8300 Series provides adjustable operating parameters for commercial entrance requirements. Standard programming includes opening and closing speed adjustment along with hold-open timing.
An optional KP EVO Programming Device (2-679-0907) is available for advanced programming functions.

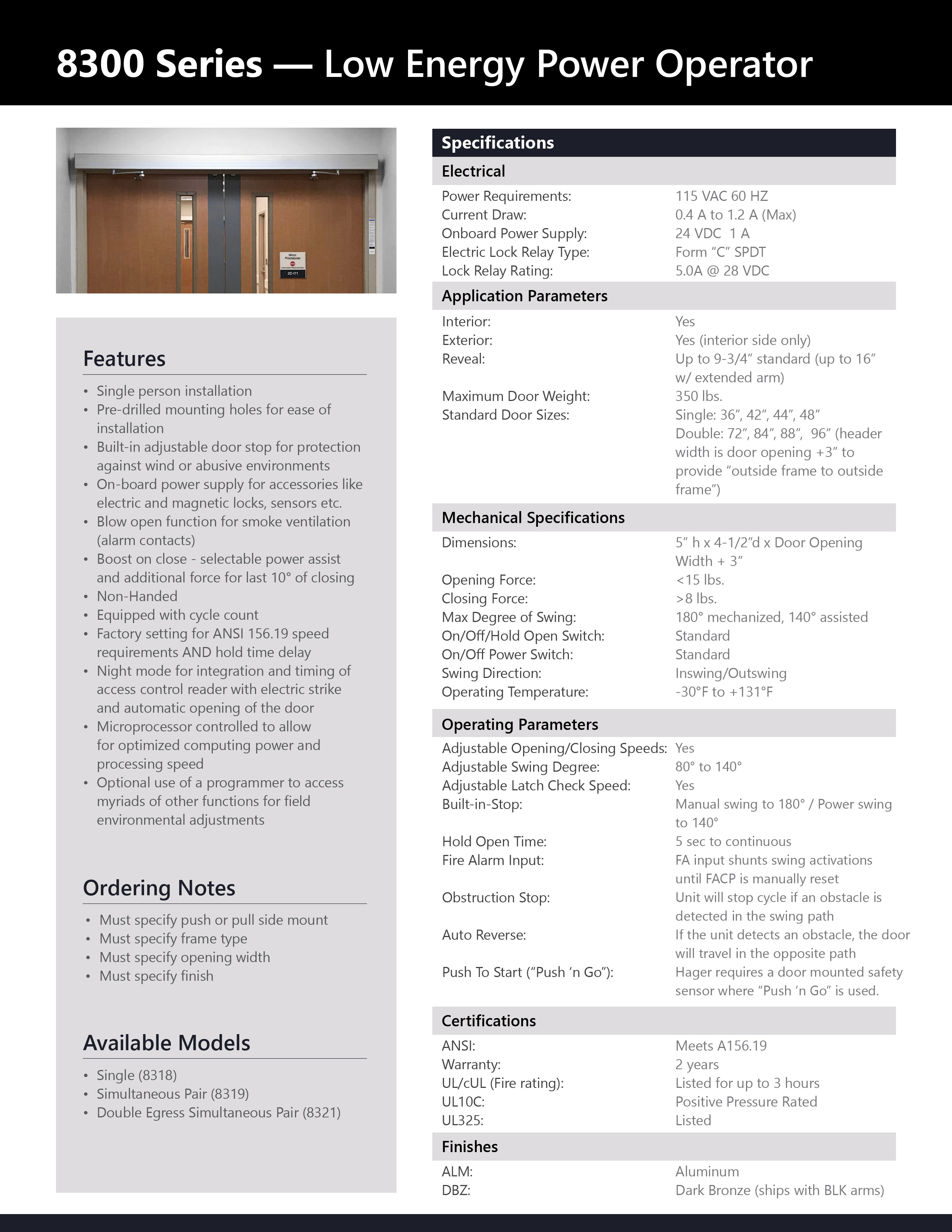

| Power Requirements | 115 VAC, 60 Hz |
| Current Draw | 0.4A to 1.2A Maximum |
| Fused Protection | 3.15A Fuse |
| Onboard Power Supply | 24 VDC, 1A |
| Electric Lock Relay | 5.0A @ 28 VDC, Form C SPDT |
The Hager 8300 includes an onboard 24 VDC accessory power supply and electric lock relay, allowing the operator to be incorporated into commercial entrance systems using compatible electric locks, magnetic locks, sensors and activation devices.

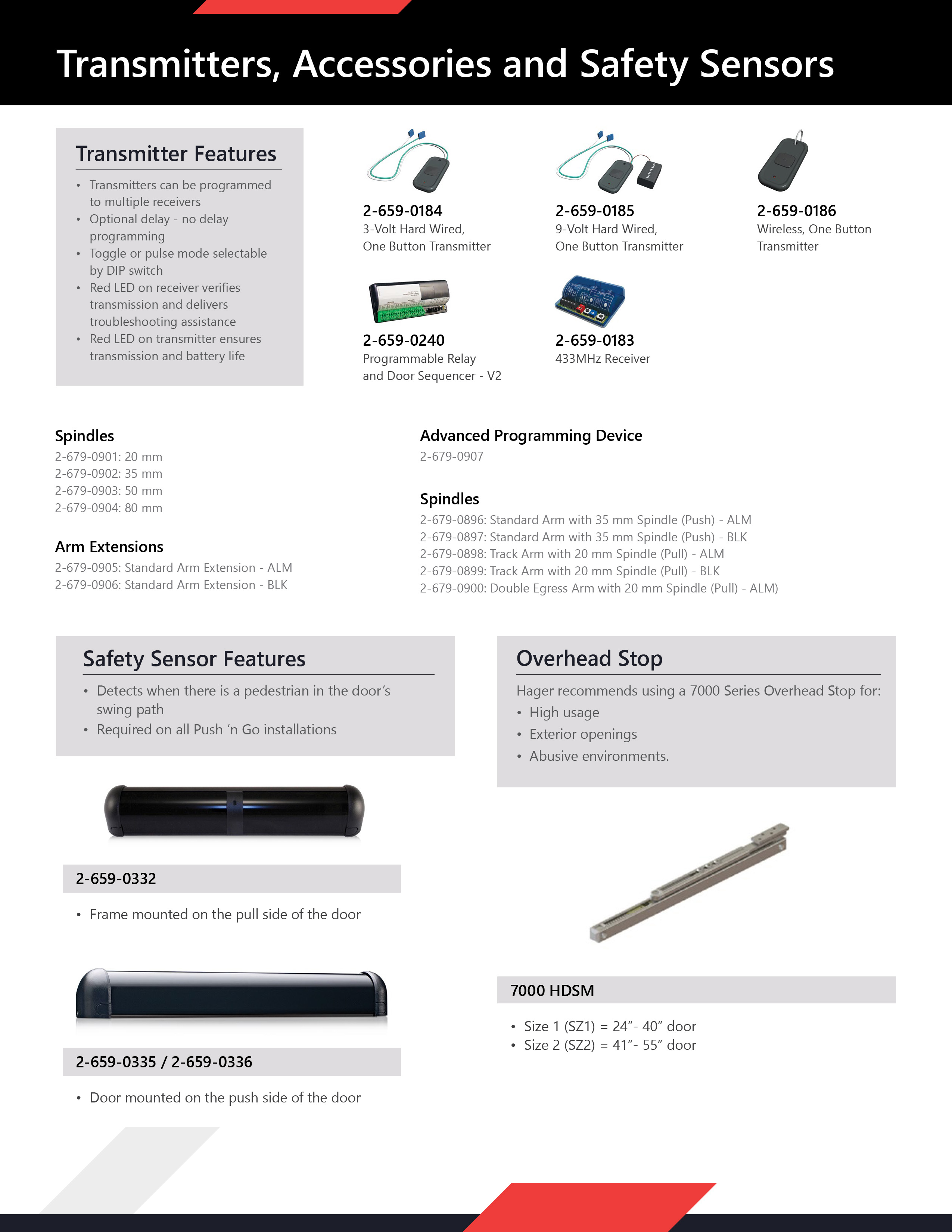

Compatible activation options can include handicap push buttons, wireless activation switches, touchless actuators and other appropriate knowing-act devices.
