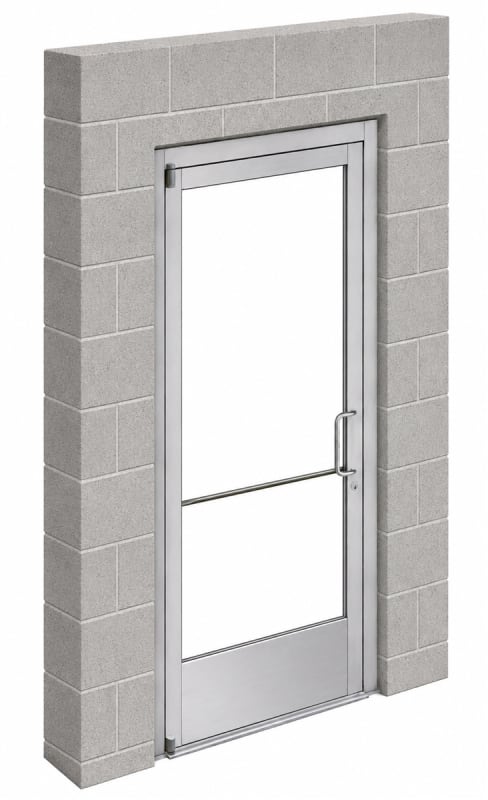

Premium Quality Architectural Storefront Door Systems Manufactured In USA
The Ranger HD architectural aluminum storefront entrance system is engineered forexterior concrete block and CMU masonry wall openings. The heavy-duty door is constructed from6063 architectural aluminum with reinforced corner blocks and welded construction for increased strength, rigidity, and dependable commercial performance.
This complete entrance package includes a heavy-duty closed-back aluminum frame, factory pre-glazed1" Low-E insulated double-pane tempered safety glass, Grade 1 commercial hardware, a10" ADA bottom rail, ADA lock indicator, adjustable hydraulic closer, full-perimeter pile weather seals, low-profile threshold, and bottom sweep.Made in USA with an approximate 3–4 week production time.
The door arrives welded, pre-glazed, and prepared for the selected hardware. The closed-back frame ships knocked down and must be assembled and installed at the job site.
This product is configured for an exterior concrete block or CMU masonry wall. Other wall types, glass packages, hanging methods, and hardware options require the appropriate Ranger HD configuration.
| Brand / Series | Ranger HD |
|---|---|
| Product Type | Architectural aluminum commercial glass storefront entrance system |
| Nominal Door Size | 36" x 84" |
| Exact Frame Size | 39-1/2" wide x 85-3/4" high |
| Recommended Rough Opening | 40" wide x 86" high |
| Handing | RH |
| Application | Exterior commercial entrance |
| Wall Type | Exterior concrete block or CMU masonry |
| Door Material | Heavy-duty 6063 architectural aluminum |
| Door Construction | Reinforced corner block and welded construction |
| Frame Construction | Heavy-duty closed-back aluminum frame |
| Frame Configuration | Knocked down for on-site assembly |
| Door Stop | Heavy-duty frame-mounted stop |
| Weather Seals | Full-perimeter pile weather seals |
| Glass | 1" Low-E insulated double-pane tempered safety glass |
| Glazing | Factory pre-glazed |
| Bottom Rail | 10" ADA bottom rail |
| Lock | Heavy-duty Grade 1 storefront deadbolt |
| Lock Indicator | ADA locked and unlocked status indicator |
| Closer | Adjustable ADA-compliant commercial hydraulic closer |
| Hanging Hardware | Heavy-duty top and bottom pivots |
| Operating Hardware | Solid aluminum pull handle and push bar |
| Threshold | Low-profile commercial saddle threshold |
| Bottom Seal | Commercial door sweep |
| Finish | Clear anodized |
| Origin | Made in USA |
| Production Time | Approximately 3–4 weeks |
Ranger HD is designed for contractors, building owners, architects, and facility managers who need a stronger and more customizable entrance than a basic value-engineered storefront package.
Final ADA and code compliance depends on the complete installed condition. The architect, contractor, installer, building owner, and authority having jurisdiction should verify all project-specific requirements.
